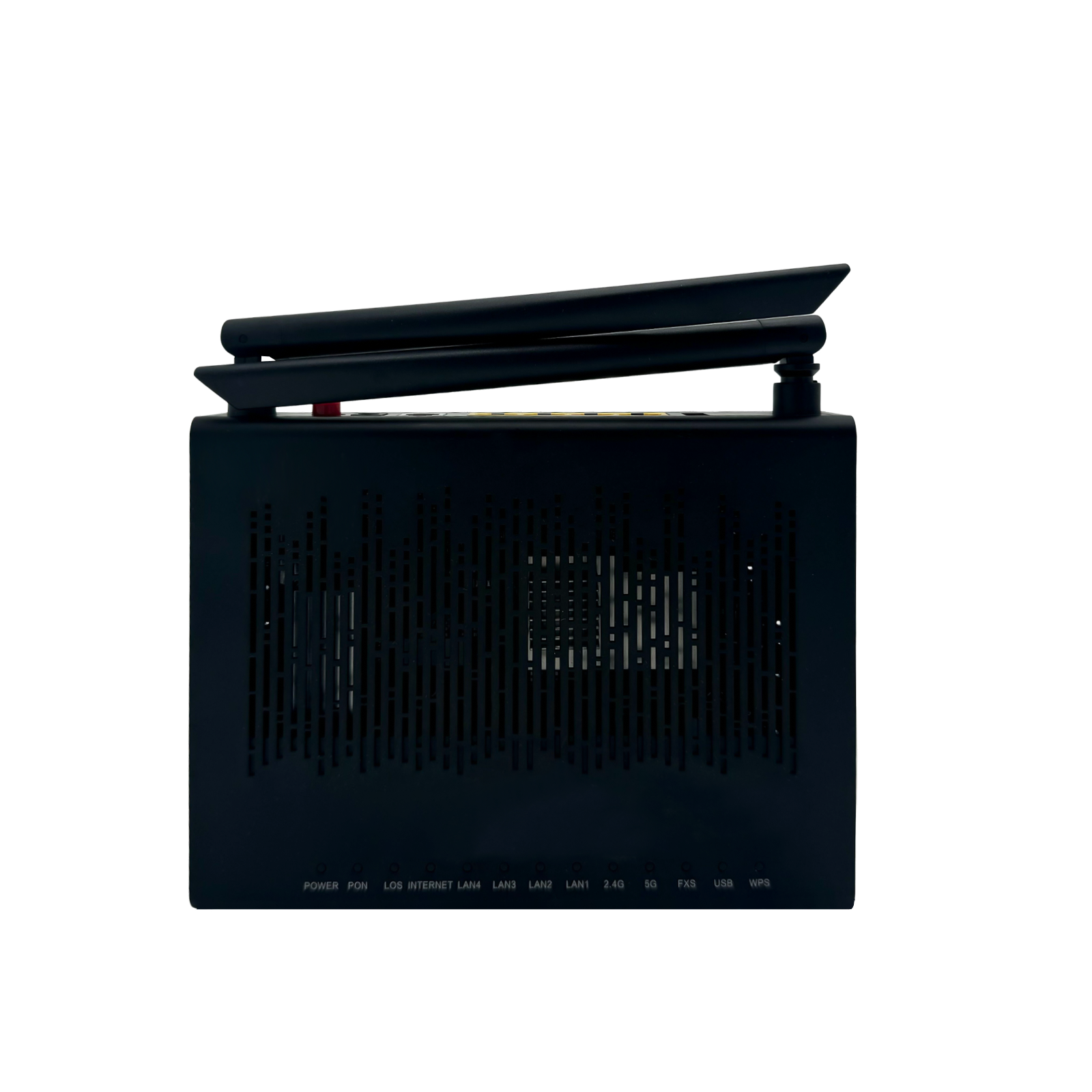

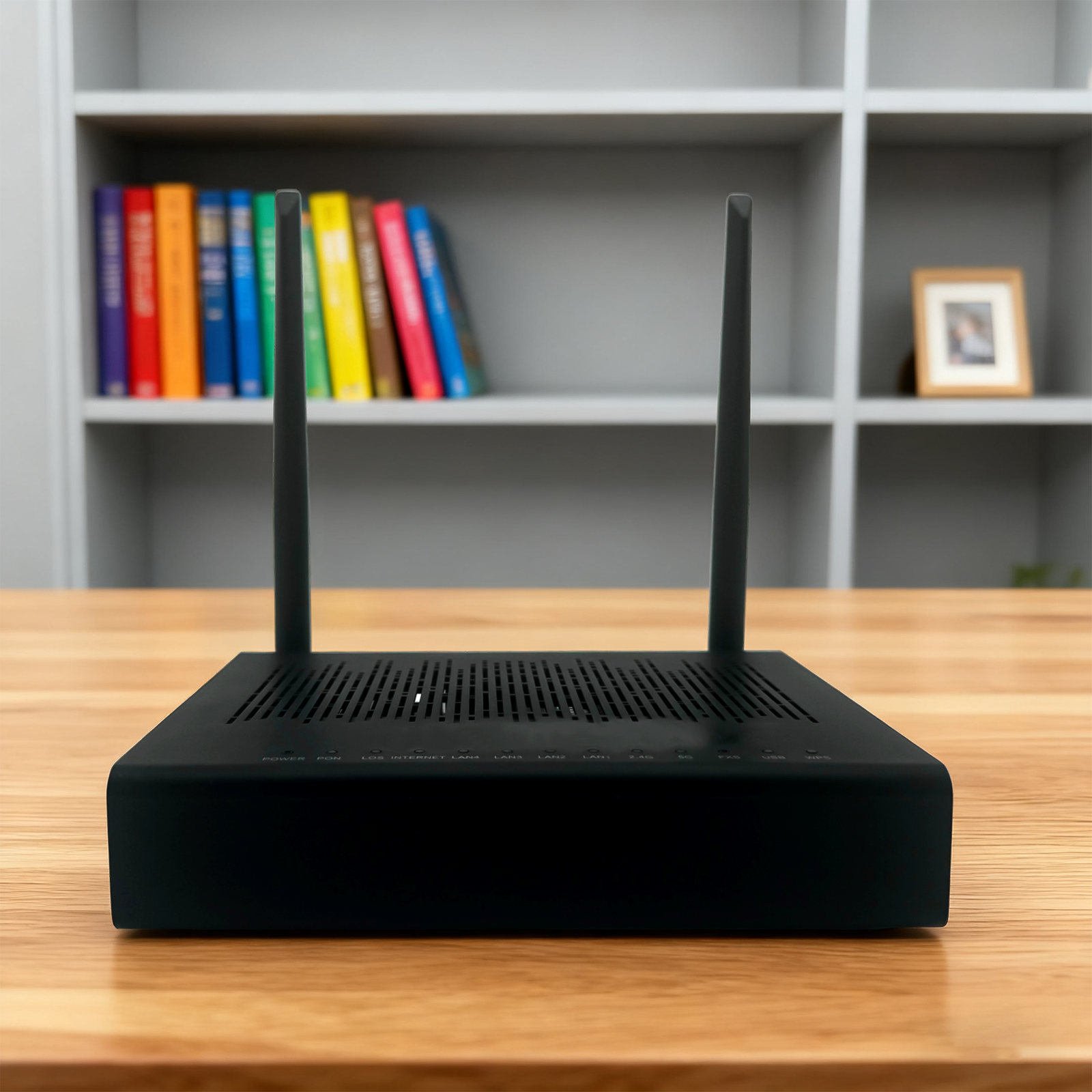

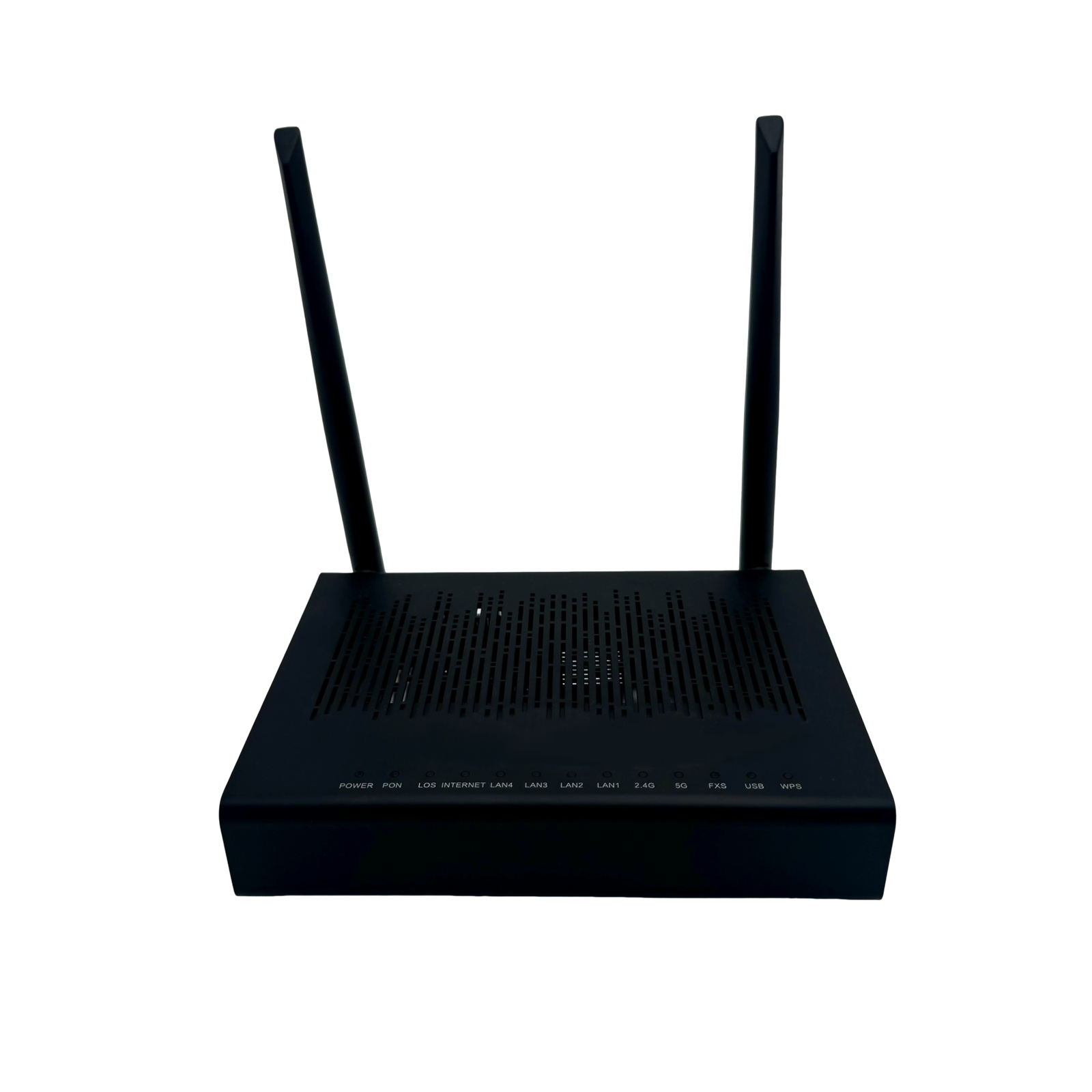

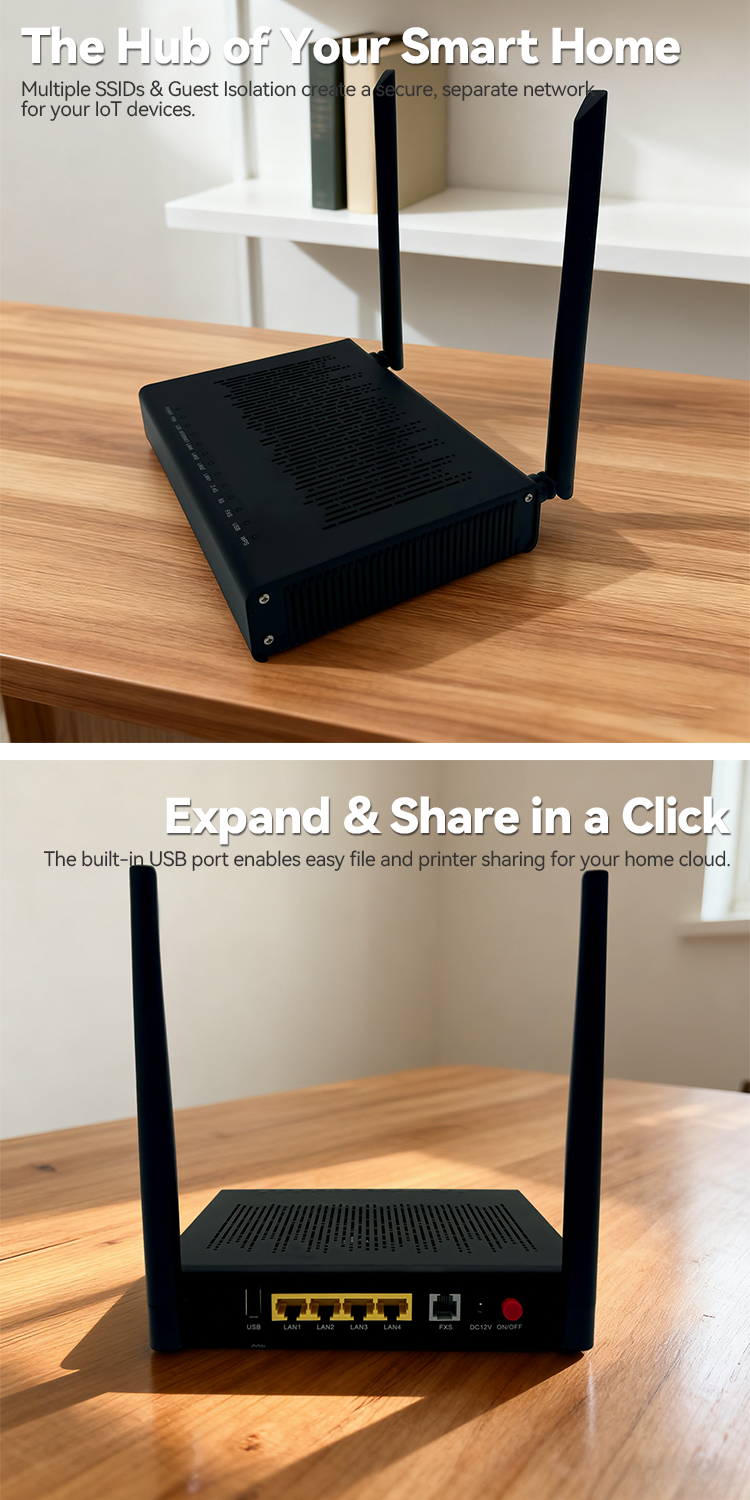

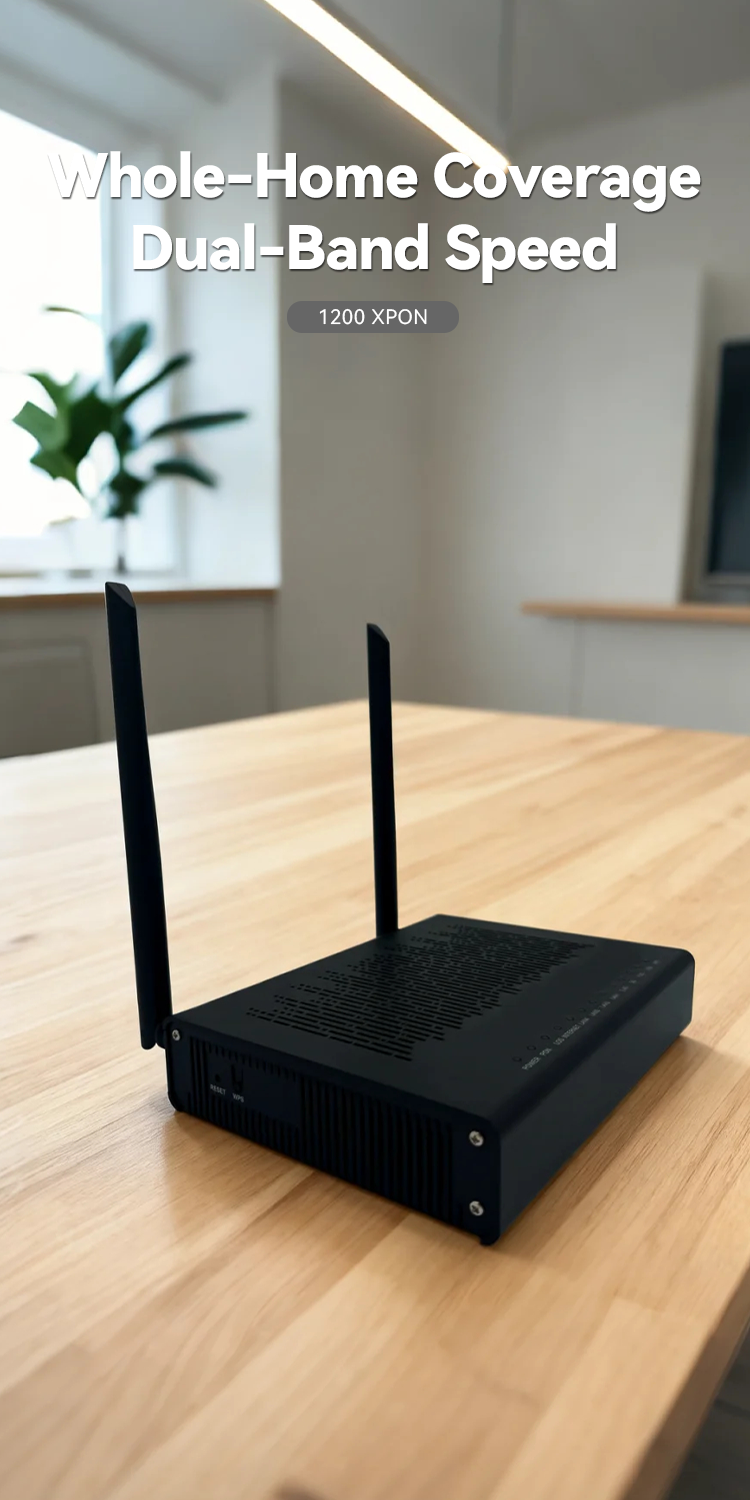

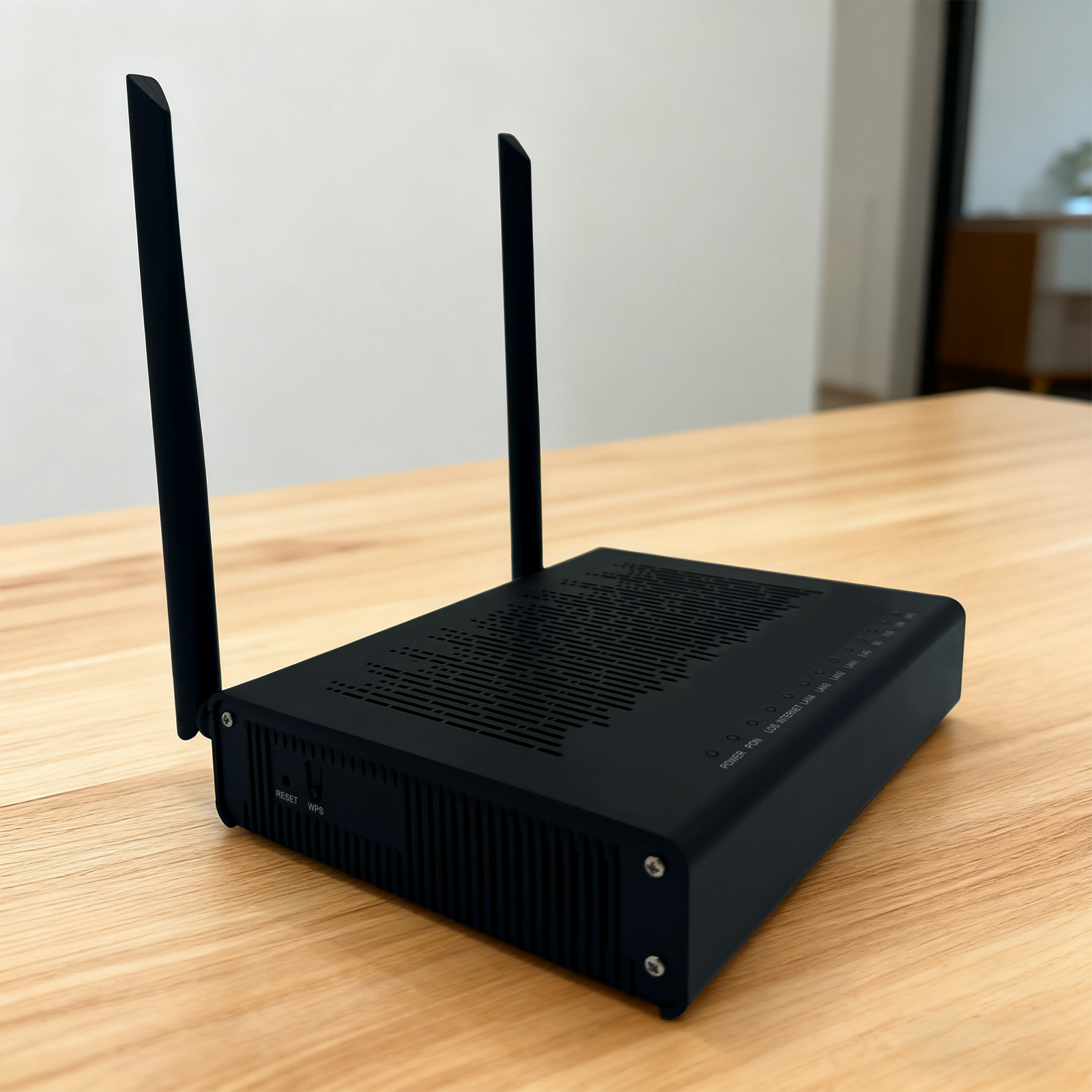

IN8145Z4 GPON/XPON Combo ONU FTTX 4GE Dual Band Wi-Fi 4 1200Mbps

Wireless Network (Wi-Fi)
Standard: IEEE 802.11ac/n/g/b
Dual-band Speed: Up to 1200 Mbps (Up to 300 Mbps on 2.4GHz band + Up to 867 Mbps on 5GHz band)

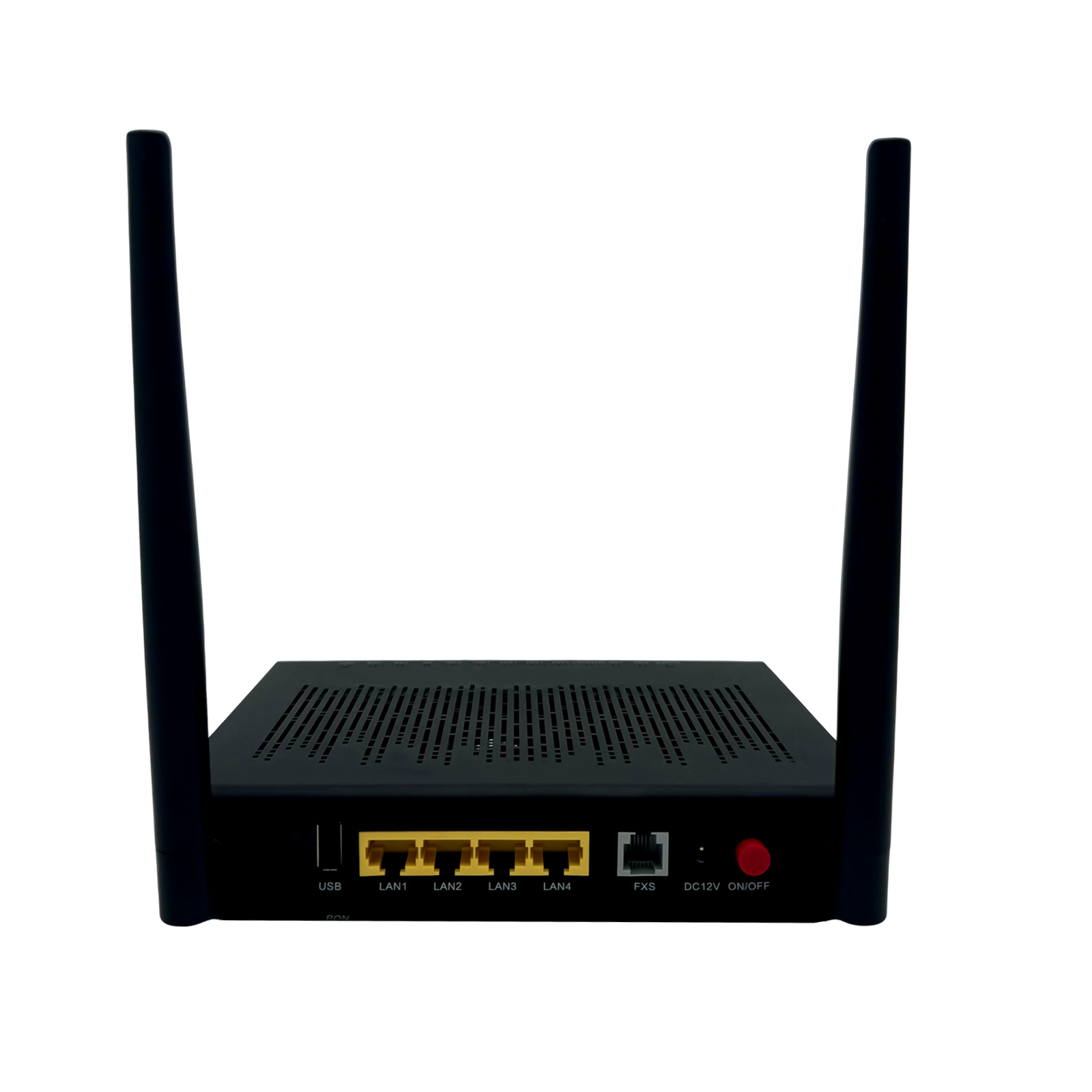

Wired Interfaces

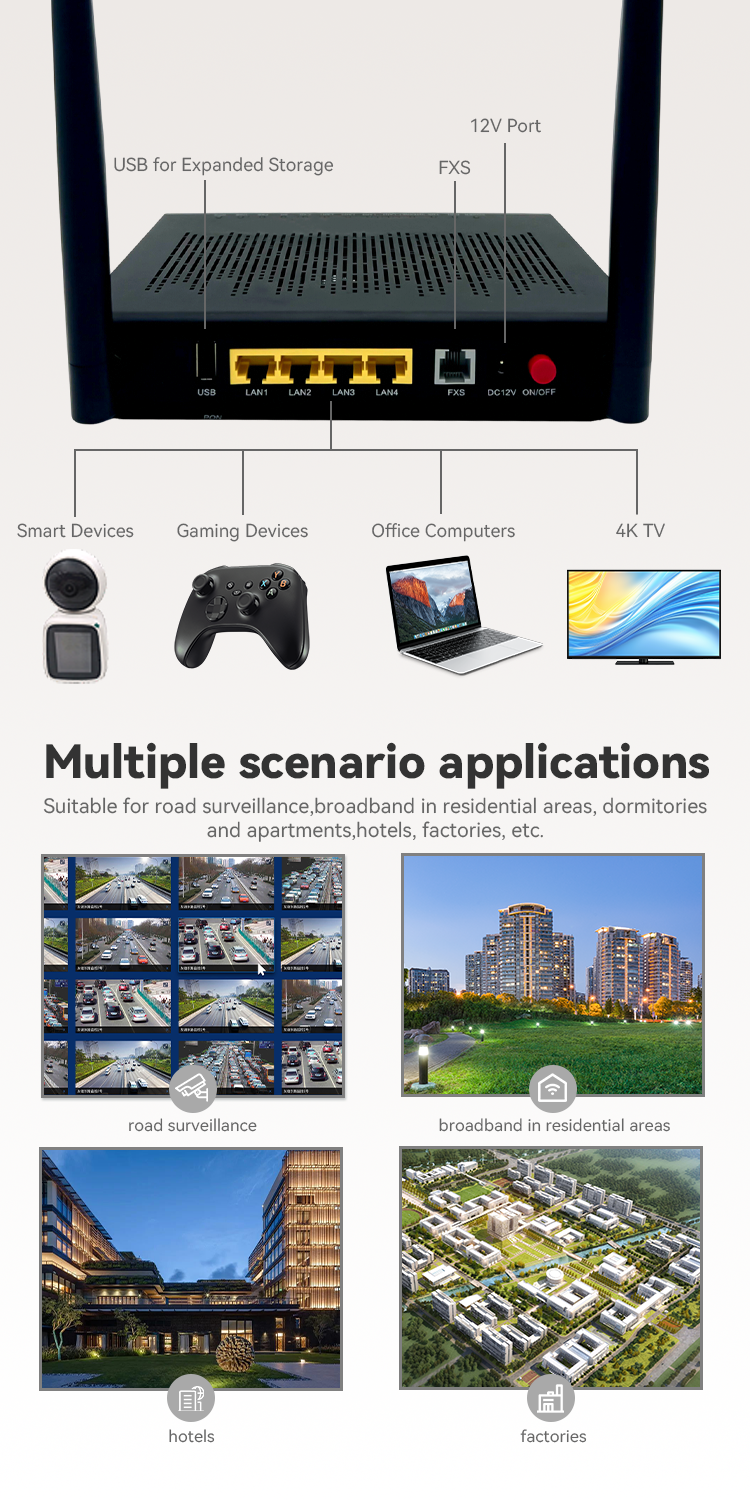

Fiber Port: 1×GPON (SC/APC connector)
LAN Ports: 3×10/100/1000M auto-negotiating Ethernet ports (GE)

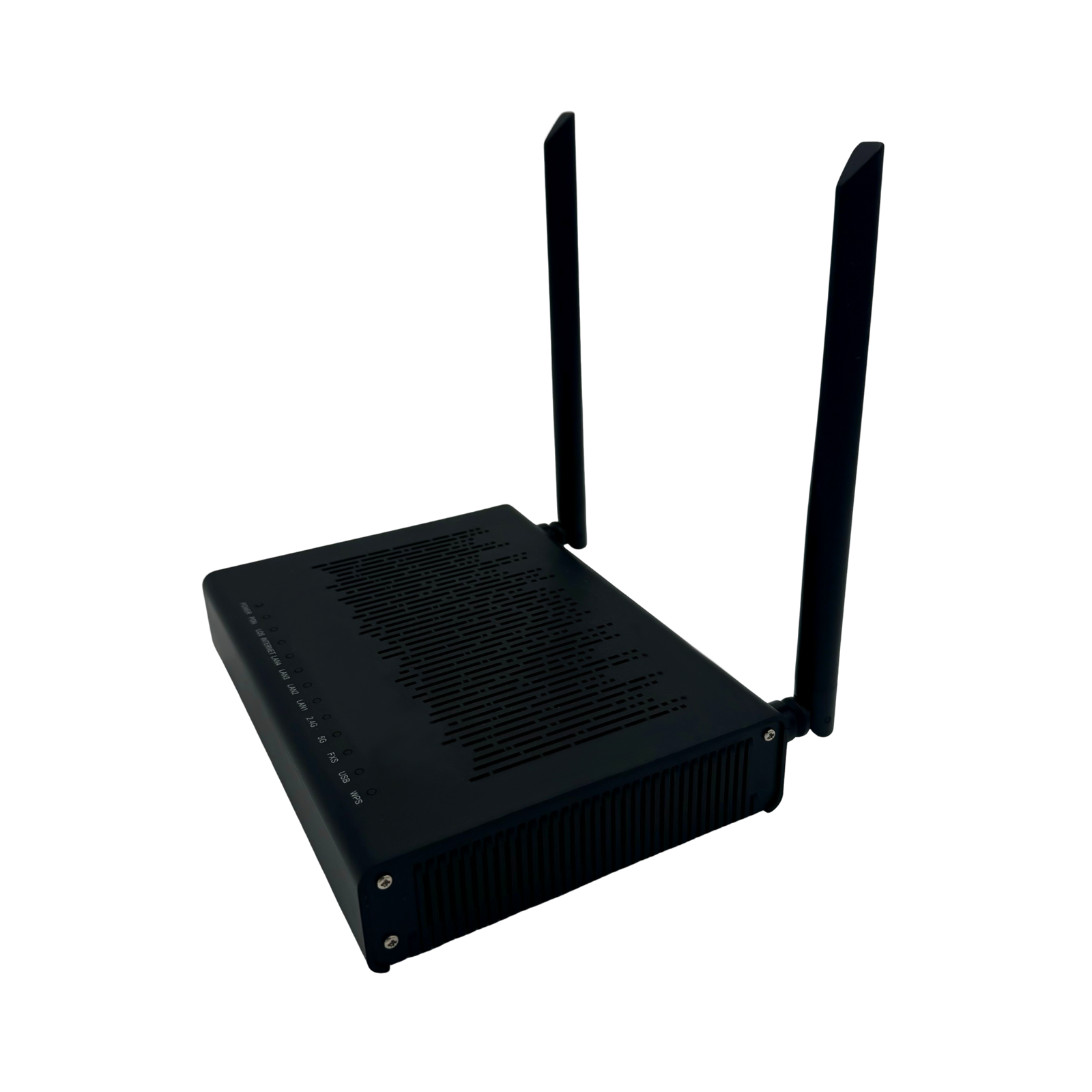

Antennas and Coverage
Antenna Configuration: 2 high-gain (e.g., 6dBi) external antennas
Technical Enhancements: Supports beamforming technology for directional signal enhancement

Core PON Features
Transmission Standard: Compliant with ITU-T G.984 GPON standard
Transmission Distance: Up to 20 kilometers
Downlink/Uplink Rates: Up to 2.5 Gbps / 1.25 Gbps

Management
Power Consumption: Typically ≤18W
Management Method: Supports remote management (e.g., TR-069/OMCI protocols) for convenient maintenance
